M91P Rim Panic Exit Device
SKU BC41030
- Wide stile rim panic exit device suitable for high-use-and-abuse exit doors. This exit device is reversible to work on both left-or right-handed single doors and double doors with a mullion. It is equipped with a dogging device that allows the device to be constantly open.
- For doors 28" to 36" wide and 1-3/4" to 2-1/4" thick. Equipped with a 3/4" deadlocking latch bolt. Head chassis requires a 4-1/4" wide stile.
- Meets ANSI A156.3 Grade 1. Meets ANSI A117.1 ADA requirements, and is UL 305 listed ensuring suitability for emergency exit doors. The M91P rim exit device offers comparable performance and technical specifications to the Von Duprin 99 Series exit device and is compatible with Von Durpin 990 Series outside trims and 110 Night Latch.
- Package includes rim panic exit device, SC4 rim cylinder, finger pull trim, hex dogging key, installation hardware, and installation templates/instructions.
- Quality You Can Trust - A global leader in security-related products and services, the Brink's name is synonymous with top quality products to keep you and your belongings safe.
Product Description
BRINKS Commercial M91P Rim Panic Exit Device provides top-shelf construction and performance for doors where a heavy-duty push bar panic exit device is needed. The M91P offers comparable performance and technical specifications as the popular Von Duprin 99 Series Exit Device at nearly 50% of the cost. The M91P can also be used with Von Duprin's 110 rim cylinder and 990 outside trim options in certain applications, making it a great solution for retrofits. The M91P exit device meets ANSI A156.3 Grade 1 standards and is UL 305 listed. The push bar mechanism offers smooth and quiet hydraulic push bar retraction compared to spring operated devices. The push bar requires less than 5 lbs. of force to engage the latch bolt, meeting ANSI A117.1 ADA requirements. This exit device is an excellent choice for single or double doors with a mullion. The Brinks Commercial M91P is suitable for high-traffic doors in schools/universities, hospitality, airports, convention centers, and commercial offices.
Construction
- Wide-stile rim panic exit device
- Heavy duty stainless steel head cover
- Satin Stainless Steel finish
- Comparable chassis design and performance to the Von Duprin 98/99 Series exit. Can be used as a direct replacement for ~50% of the cost
- M91P Exit Device is compatible with Von Duprin 990 Series Outside trims and 110 Night Latch.
- Push Bar End Cap is designed to prevent catching of clothing or peronsal items during egress
- Significant noise reduction with fluid filled hydraulic dampener
- Equipped with dogging device and provided hex key
Durability
- Meets ANSI A156.3 (2020) Grade 1 standards
- Push bar requires 5lbs. or less of force to press which meets ANSI A117.1 ADA requirements
- UL305 Listed: Designed to facilitate egress of persons from buildings in the event of panic or emergency
Installation
- 3/4" deadlocking latchbolt
- Can be used on doors with 161 door prep
- Included SC4 Brass cylinder and finger pull plate for exterior side of door
- Non-handed/Reversible
- Dogging device: Latch can be dogged open for high-traffic doors (hex key included)
- Intended for single doors and double doors with a mullion

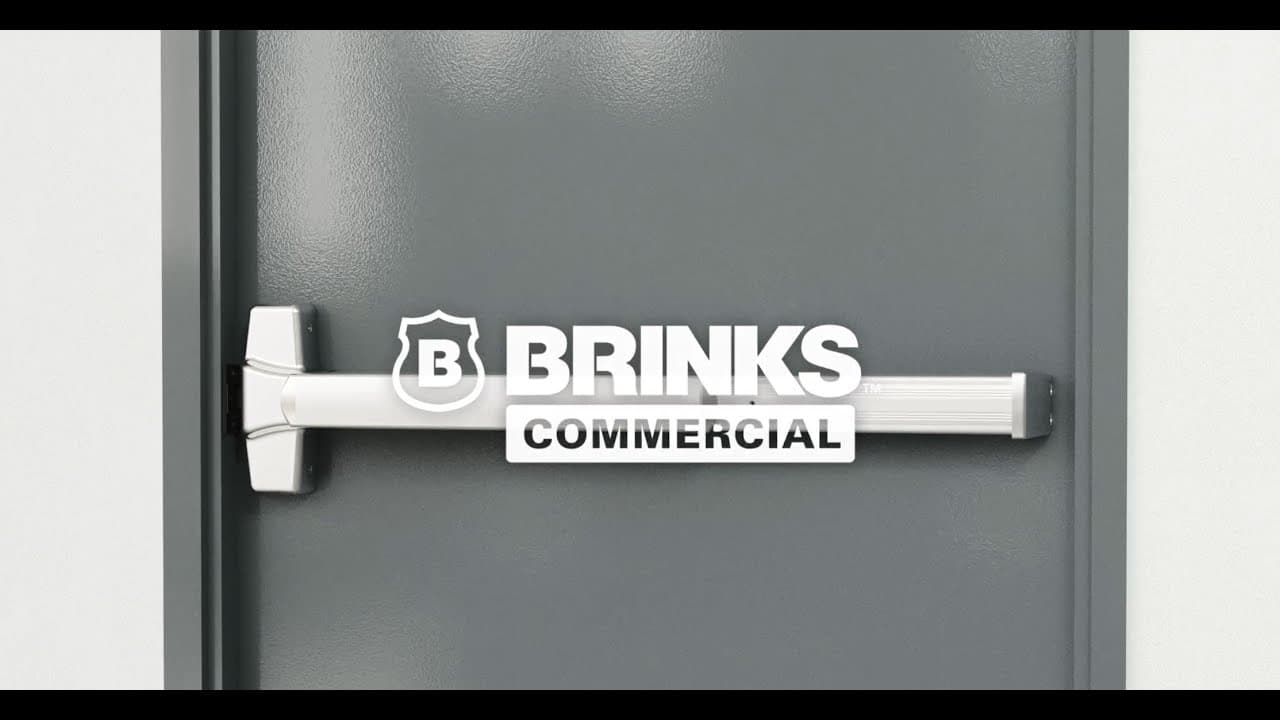

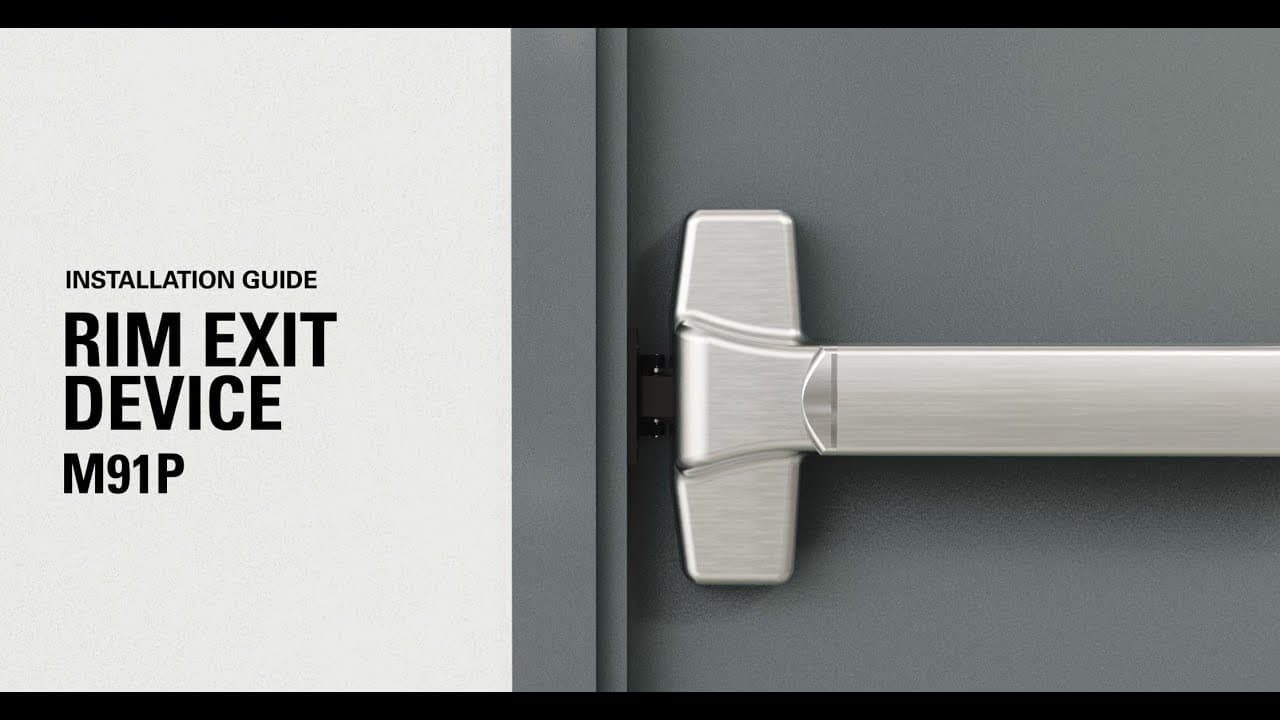

Videos
Additional Images
Mounting Images
Drawing Images
Product Information
Item Details
- Category
- Exit Devices
- Function
- Push
- Color
- Satin Stainless Steel
- Quantity
- 1
- Mount Type
- Surface Mount
- Interior Door Compatibility
- Doors up to 36" wide out of the box. Can be field sized to fit doors 28" -35" wide
- Mount Type
- Surface Mount
- Warranty
- 10 Year Limited Warranty
- UPC
- 039208251327
